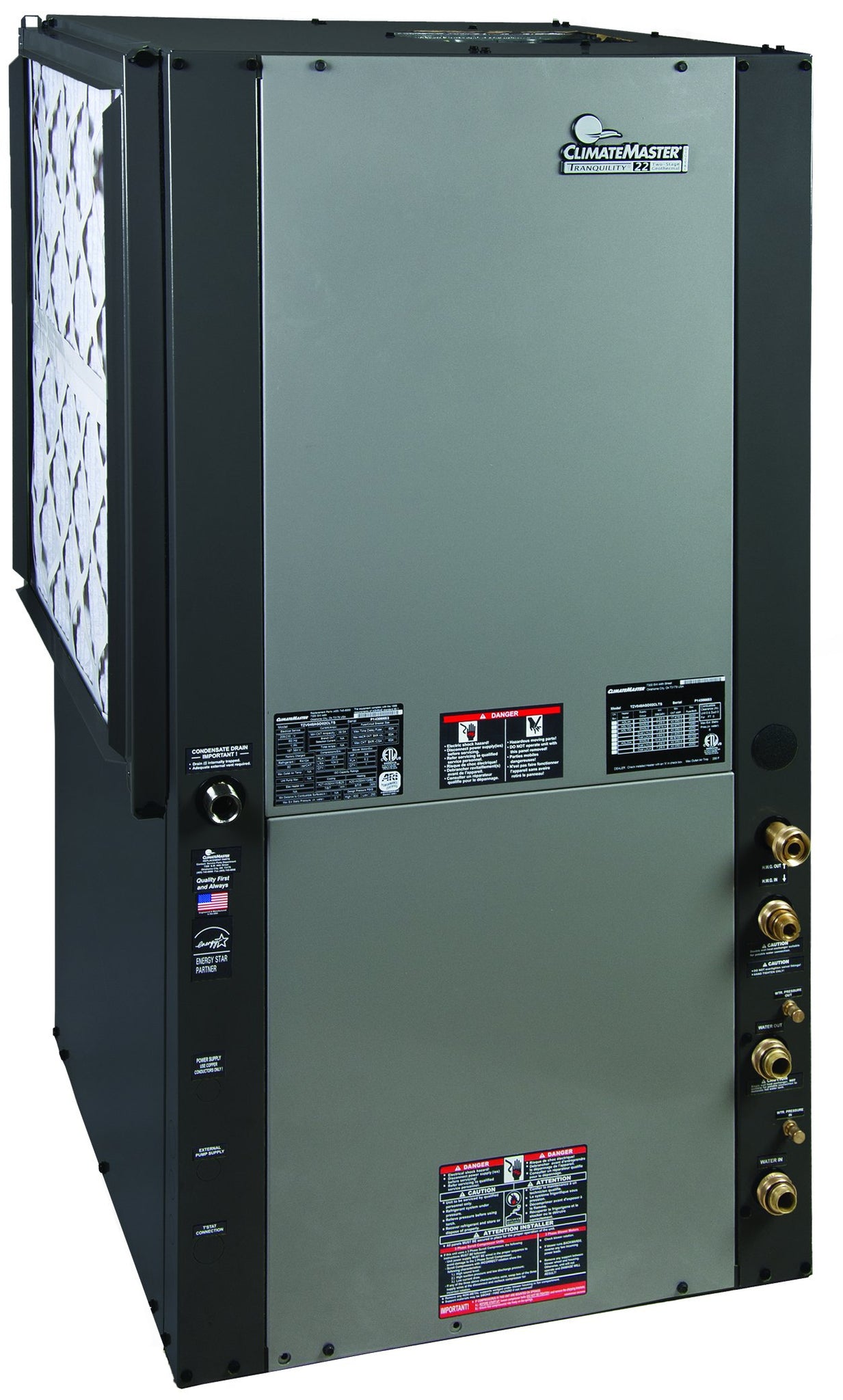

Geothermal heat Pump 5 ton 2 stage Climatemaster Install Package TZV060BGD00CLTS

IN STOCK

TZ22 Series: TZV060BGD00CLTS

2 stage compressor

Left hand return uses external pump and copper heat exchanger

Single phase 208/230 voltage 25.2 min circuit amps 21.4 FLA

22.4 wide X 26.0 deep X 46.5 Height 233 lbs

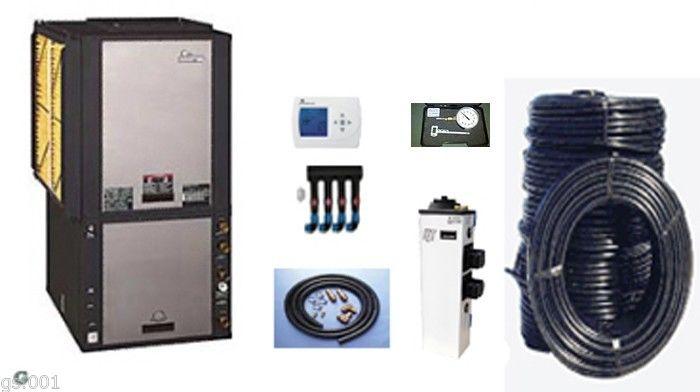

This  kit includes:

Qt2-230 flow center

Hose kit

Climatemaster thermostat

1 pair of 5 port manifolds

5 - 3/4 X 800' coils of HDPE geo pipe

 10 year parts and 5 year labor warranty

Click here for installation manual.

Click here for product catalog.



*Needs Climatemaster ATC32U02 Communicating Thermostat to make this system operate properly.

 *Free gift with Purchase*

Technician's test Kit - includes pressure guage with needle for the PT port testing, digital temperature probe and compact padded case. This kit allows technicians to diagnose and trouble shoot Geothermal systems, calibrate flow rates, determine super heat of system for performance testing.

Free shipping to LTL freight center or business with dock or



We will gladly help with all of your questions. 877-220-0221

Shipping calculated at checkout.
Quantity must be 1 or more

$10,710.00

Description

TZ22 Series: TZV060BGD00CLTS

2 stage compressor

Left hand return uses external pump and copper heat exchanger

Single phase 208/230 voltage 25.2 min circuit amps 21.4 FLA

22.4 wide X 26.0 deep X 46.5 Height 233 lbs

This  kit includes:

Qt2-230 flow center

Hose kit

Climatemaster thermostat

1 pair of 5 port manifolds

5 - 3/4 X 800' coils of HDPE geo pipe

 10 year parts and 5 year labor warranty

Click here for installation manual.

Click here for product catalog.



*Needs Climatemaster ATC32U02 Communicating Thermostat to make this system operate properly.

 *Free gift with Purchase*

Technician's test Kit - includes pressure guage with needle for the PT port testing, digital temperature probe and compact padded case. This kit allows technicians to diagnose and trouble shoot Geothermal systems, calibrate flow rates, determine super heat of system for performance testing.

Free shipping to LTL freight center or business with dock or



We will gladly help with all of your questions. 877-220-0221
